CHW Series

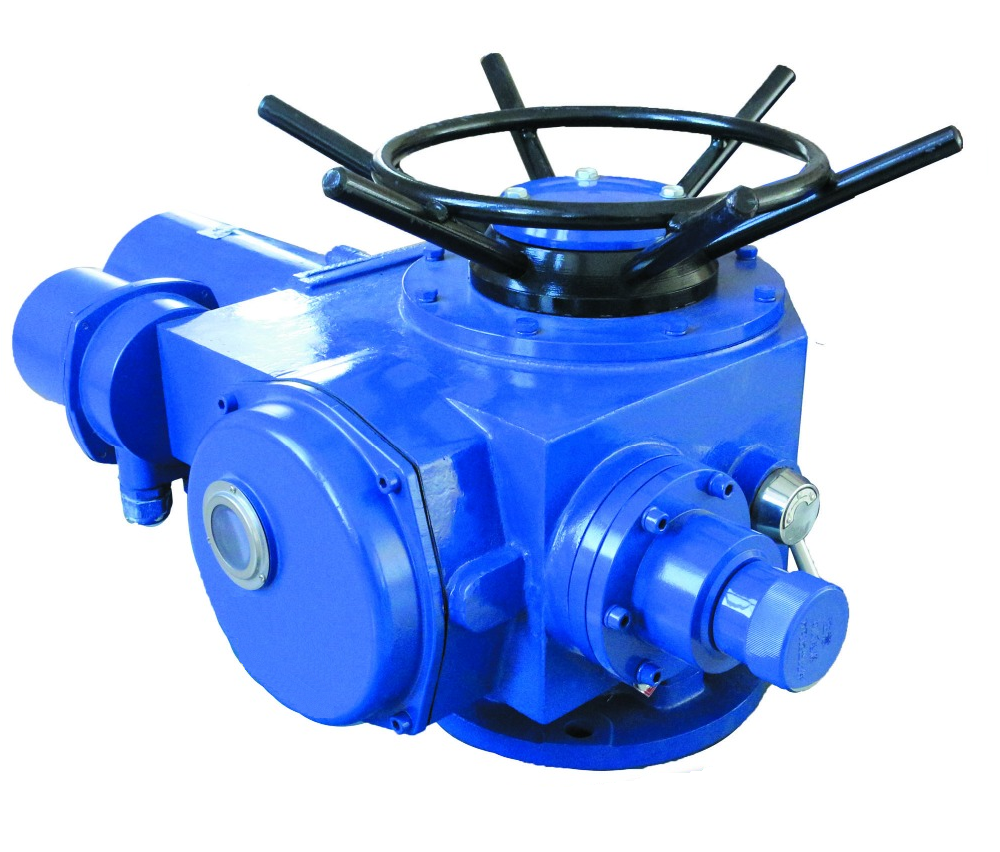

Product Name: CHW Normal Type Multi Turn Electrical Actuator

Power: 415V



CHW-type rotary electric actuator unit in the instrument cluster execution unit, which accepts adjusting unit (or computer) signal, automatically adjusting the steering actuator to complete the task, widely used in power plants, chemical, petroleum, metallurgy, building materials, heating, light industry, water treatment and other industries. It can output torque and 360-degree angle.

    CHW electric actuator, with a variety of electric operator can adjust the system to complete the "Manual ← → Auto" switch without disturbance, in a timely manner to be adjusted manually distant objects.

We produced the actuator position transmitter are using the latest sensing element, the circuit reference to the latest foreign company, set power transformer, rectifier, regulator, amplifier, constant current one, made of modules (M) so that the actuator reliability and stability, making the system more secure.

Main Technical Performance

1. Input Signal: Switch Signal

2. Input Channels: Three

3. Input Resistance: Type Ⅱ 200Ω; Ⅲ Type 250Ω

4. Output Signal: Type Ⅱ 0-10ma, DC; Ⅲ Type 4-20ma, DC

5. Output Shaft 100 ± 20 Times Per Revolution Minutes

6. Output Shaft Effective Angle 90º

7 .Dead: Type Ⅱ ≤150μa; Ⅲ Type ≤240μa

8. Resistance Nits Output Shaft Oscillation Frequency Does Not Exceed The "Three And A Half" Cycle

9. Basic Error: ± 2.5%

10. Hysteresis: 1.5%

11. Power Supply Voltage: 415V  (+ 22V, -33V) 50Hz

12. Ambient Temperature: Amplifiers: 0 ~ + 50 ℃; Actuators: -25 ~ + 55 ℃

13. Ambient Relative Humidity: Amplifiers: 10% To 70%, Actuator: ≤95%
